Replication Job Wizard for Proxmox VE: Destination

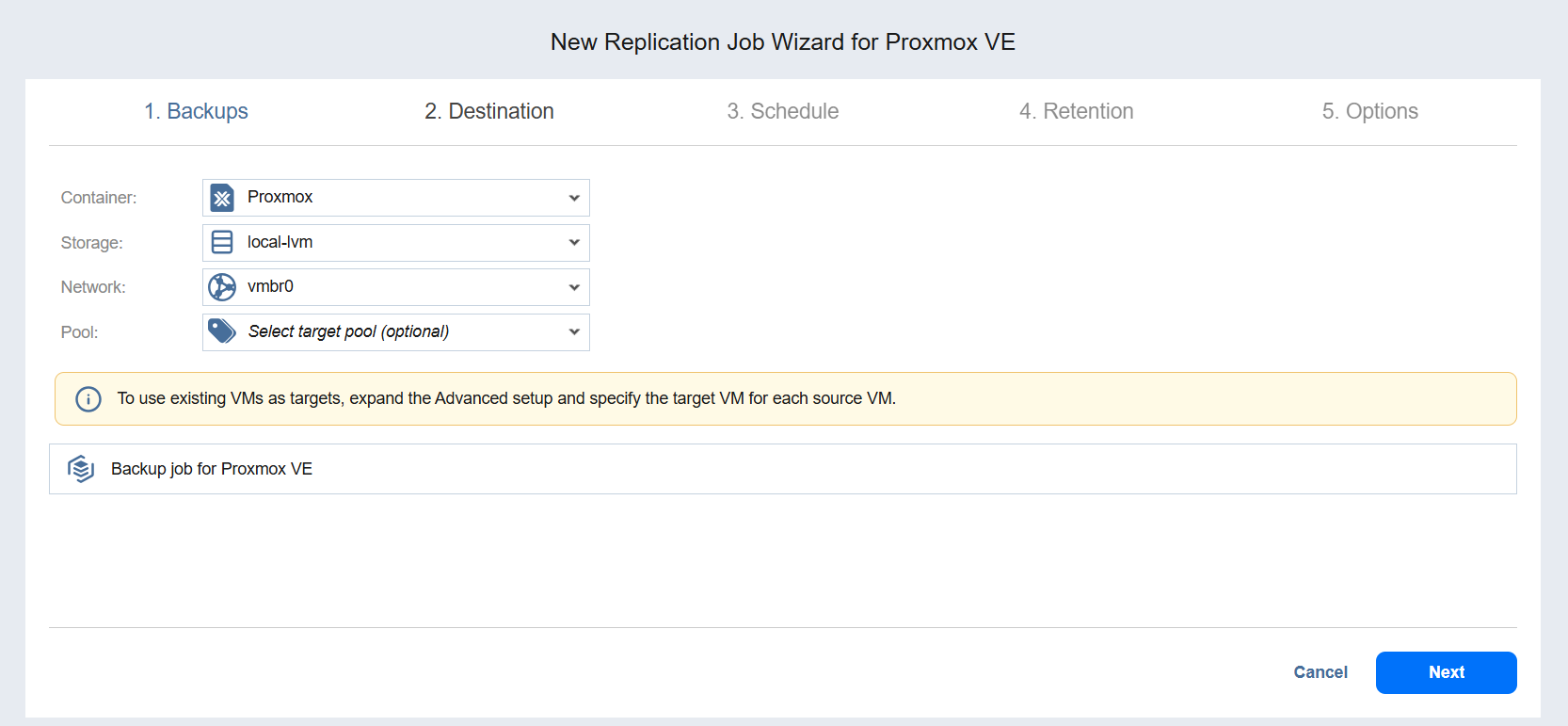

On the Destination page, select a location for your replica(s).

Setting the Same Host, Storage, and Pool for All Replicas

To replicate all VMs to the same container and storage, and to connect all replicas to the same network, follow the steps below:

  1. Choose a cluster, host, or resource pool from the Container drop-down list.

  2. Choose a storage from the Storage drop-down list.

  3. Optionally, you can select a target pool from the Pool drop-down list.


Setting the Default Destination for Replicas

If you have chosen a host, cluster, folder, or a resource pool as a source for your replication job on the Source wizard page, you can set the default container, storage, and VM folder for replicas. To do this, follow the steps below:

  1. Click Advanced setup and then click on the name of the chosen host, cluster, folder, or a resource pool.

  2. Choose a Default container.

  3. Next, select the Default storage.

  4. Optionally, you can also choose a Default pool.

Setting Different Options for Replicas

To specify different replication options for VMs, follow the steps below:

  1. Click Advanced setup.

  2. Choose a target container, target VM, and target pool for each VM.

Mapping Source VMs to Existing Replicas

If you want to perform staged replication or if you lose the replication job (due to accidental job deletion or because you need to recreate jobs in a new copy of the product), you can map source VMs to existing replicas to avoid running full VM replication again.

To map source VMs to existing VMs, follow the steps below:

  1. Click Advanced setup.

  2. Open the target VM drop-down list and select the Use existing target VM option.

  3. Select the VM that should be used as a target for replication in the Virtual Machine drop-down list.

When you run the job, the product analyzes the target VM you have selected, determines how it is different from the source VM, and transfers only the differential data.

VM replication mapping can be a time-consuming process that can be equal to the time required to create a full VM replication.

After the job completion, a new recovery point will be created and existing recovery points will not be changed or overwritten.

Excluding a VM Disk from the Replication Job

If you do not want to replicate some disks of a VM, you can exclude those disks from the replication job. Follow the steps below:

  1. Click Advanced setup.

  2. Open the target VM drop-down list.

  3. Click the drop-down list next to the disk that you want to skip and select the Skip this disk option.

  4. After you have specified replica location options, click Next to go to the next page.
